High-Quality 3-Wire 10A 22mm Diameter Slip Ring Connector for Motors & Rotating Electrical Devices | Durable Rotary Electrical Contact Solution for Robotics, Wind Turbines & Industrial Equipment

Product Description

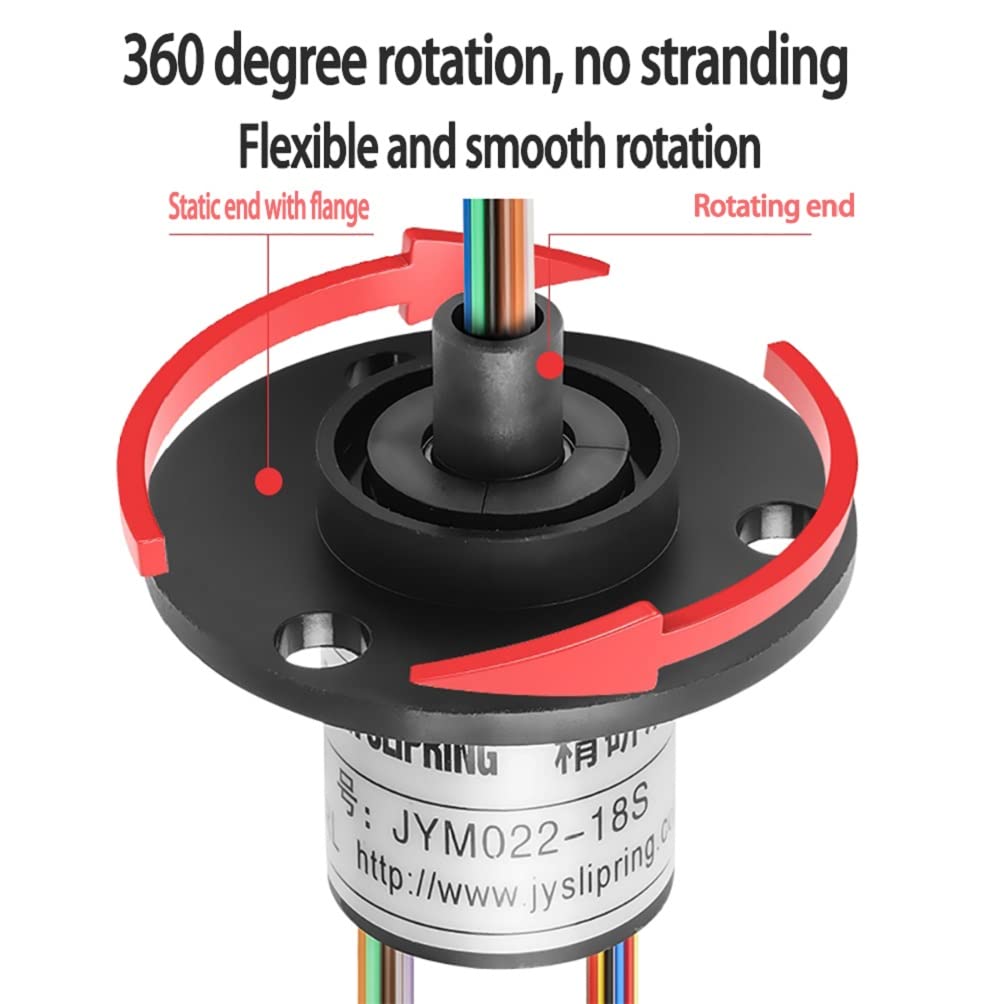

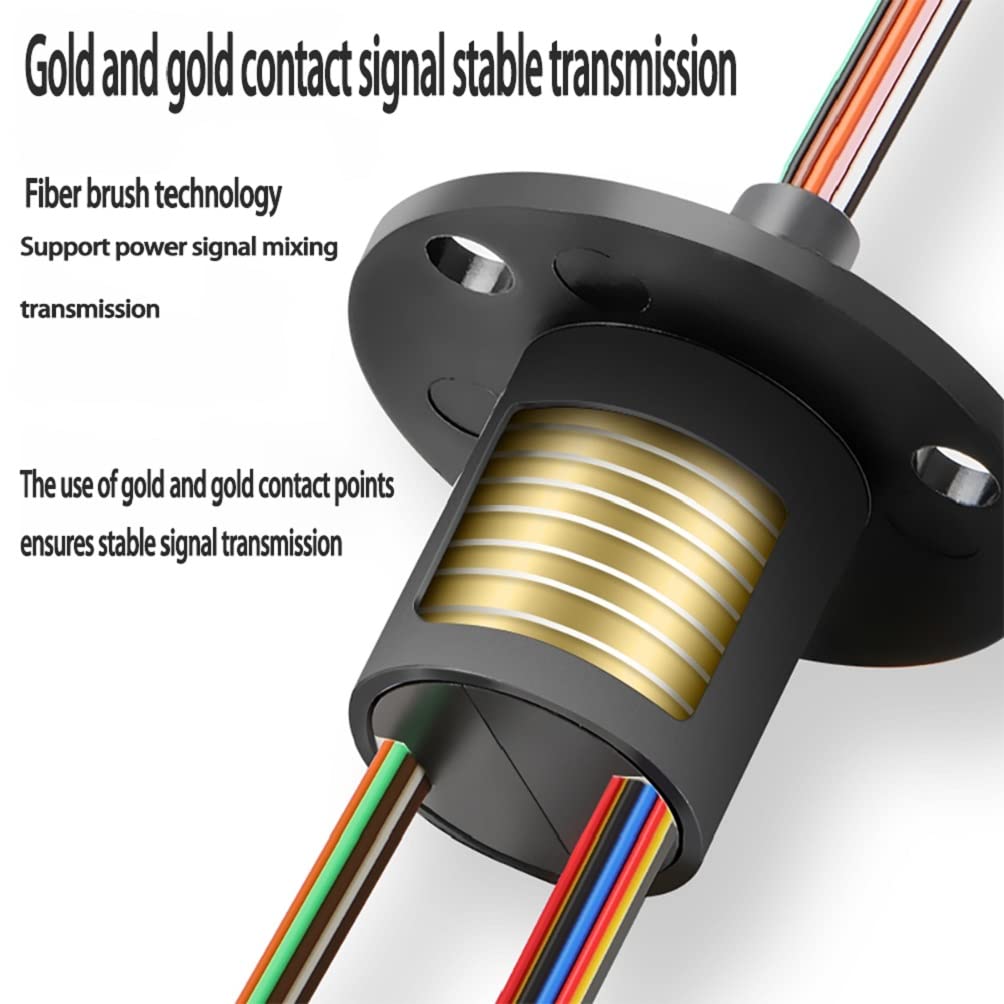

Electrical Slip Ring Collector Ring Rotary Electrical Contact Joint Rotary Connector Commutator Electrical Slip Ring Collector Ring Rotary Electrical Contact Joint Rotary Connector Commutator Features. 1. the rotating contact surface is gold-gold, and the precious metal contact ensures an extremely long working life. 360° smooth and unrestricted rotation, fully satisfying image and data transmission. 2. Low torque, low noise, wide range of applications, can meet the requirements of various industries, and can be customized according to customer needs. Compact structure and smooth operation. Applications. For PTZ, electrical test equipment, turntables, medical equipment, CCTV security monitoring equipment, robots, exhibition/display equipment, manufacturing and process control equipment, small wind turbines, radar antennas, etc.. Specifications: Voltage: 0-440 VAC/DC Speed: 0-300 Rpm Housing Material: Engineering Plastics Work Humidity: 60%RH or higher Work Temp.: -40℃~+80℃ Contact material: Gold plated ring-Gold plated brush nsulation resistance: 1000 Mω @ 500 VDC Dielectric strength: Between each circuit and all other circuits,≥ 500 VAC @ 50Hz Electrical noise: ≤10mω Work life: Depending on speed and working environment, ≥80,000,000 runs ref Applications: Monitoring System/Electrical test equipment/Medical equipment/obotics
